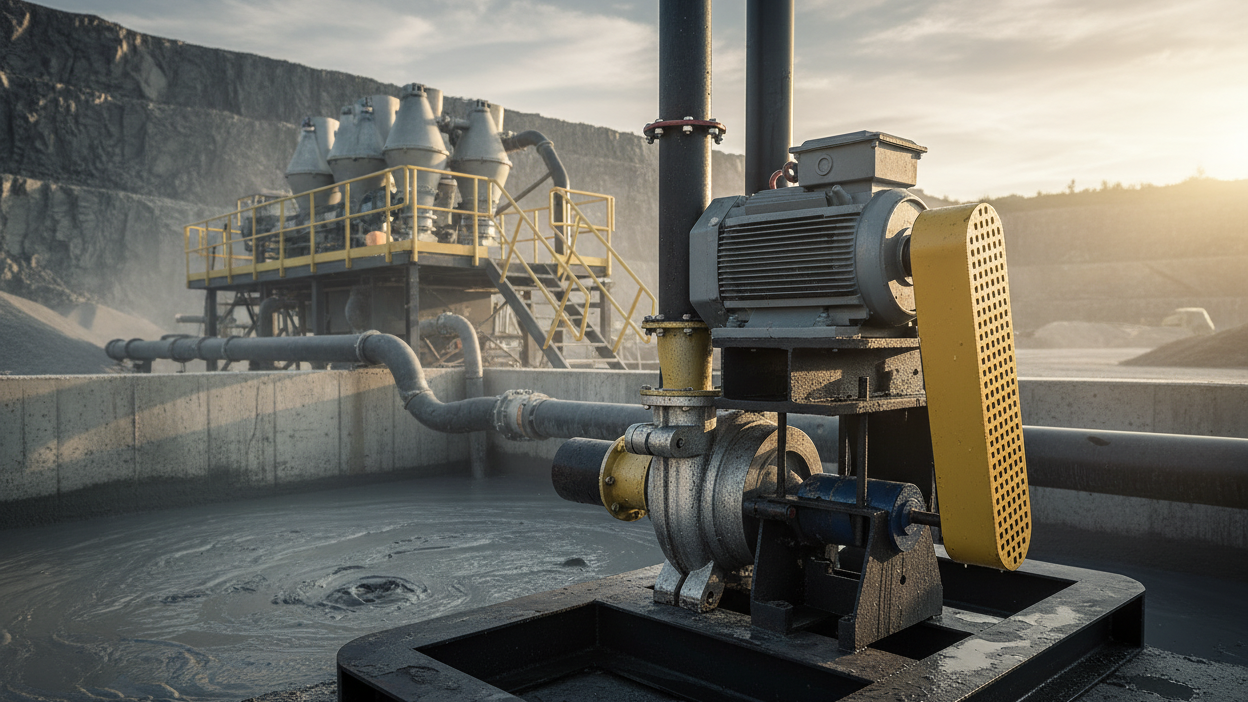

Slurry Pump Impeller Selection: Match Design to Your Application for Maximum Life

Select the right slurry pump impeller for your application. Impeller types, materials, and sizing for sand washing and mineral processing.

Sivabalan Selvarajan May 07, 2026 9 min read 16 views

Slurry pump impeller selection directly determines pump efficiency, wear life, and operating costs in sand washing and mineral processing applications. The wrong impeller design can reduce pump life from the typical 4,000-6,000 hours to as few as 500 hours while consuming 20-30% more power than necessary. Understanding the relationship between impeller geometry, slurry characteristics, and application requirements enables selection decisions that optimize both performance and total cost of ownership.

Understanding Impeller Function in Slurry Pumps

How Impellers Generate Flow and Pressure

Slurry pump impellers convert rotational energy from the motor into kinetic energy in the slurry. The impeller accelerates slurry radially outward, and the volute casing converts this velocity into pressure. The fundamental relationships governing impeller performance:

Head (H) ∝ (Impeller Diameter)² × (Speed)²

Flow (Q) ∝ (Impeller Diameter)³ × Speed

Power (P) ∝ (Impeller Diameter)⁵ × (Speed)³

These relationships explain why small changes in impeller diameter or speed have dramatic effects on pump performance and power consumption.

Slurry-Specific Design Considerations

Unlike clear water pumps, slurry pump impellers must handle abrasive solids that cause wear. Key design differences:

FeatureClear Water ImpellerSlurry ImpellerReason
Vane number5-73-5Larger passages for solids
Vane thickness3-5mm15-40mmWear allowance
MaterialBronze, cast ironHigh-chrome iron, rubberAbrasion resistance
Passage widthMinimum for efficiencyMaximum for solidsPrevent clogging
Shroud designOften openUsually enclosedReduce recirculation wear

Impeller Types and Applications

Closed (Enclosed) Impellers

Closed impellers have shrouds on both sides of the vanes, creating enclosed flow passages. Characteristics:

Advantages:

  • Higher efficiency (less recirculation losses)
  • Better wear life in most applications
  • More predictable performance curves
  • Suitable for higher pressures

Disadvantages:

  • More prone to clogging with fibrous material
  • Difficult to repair—usually replace complete impeller
  • More expensive than open designs

Best applications: General slurry pumping, cyclone feed, thickener underflow, sand washing slurries without fibrous contamination.

Semi-Open Impellers

Semi-open impellers have a shroud on one side only (back shroud), leaving the vane tips exposed on the suction side. Characteristics:

Advantages:

  • Better solids passage than closed design
  • Less prone to clogging
  • Adjustable clearance maintains efficiency
  • Lower cost than closed impellers

Disadvantages:

  • Lower efficiency than closed design (5-10% typically)
  • Critical clearance adjustment required
  • Front liner wear affects performance

Best applications: Dredging, process slurries with varying solids, applications requiring frequent cleaning.

Open Impellers

Open impellers consist of vanes mounted on a hub without shrouds. Characteristics:

Advantages:

  • Maximum solids passage capability
  • Minimal clogging tendency
  • Easy inspection and cleaning
  • Lowest cost option

Disadvantages:

  • Lowest efficiency (10-15% less than closed)
  • Rapid efficiency loss with wear
  • Limited head capability
  • Requires frequent adjustment

Best applications: Sump pumps, trash-laden slurries, temporary installations, low-head applications.

Recessed (Vortex) Impellers

Recessed impellers sit behind the volute inlet, generating flow through vortex action rather than direct contact. Characteristics:

Advantages:

  • No impeller-solids contact in most designs
  • Handles stringy, fibrous material
  • Passes very large solids
  • Excellent for sensitive materials

Disadvantages:

  • Lowest efficiency (40-50% typical vs 65-75% for closed)
  • Limited head and flow capability
  • Higher power consumption per unit flow

Best applications: Sewage, fibrous slurries, fragile materials, clean-out sumps.

Material Selection for Impellers

High-Chrome White Iron

The most common slurry pump impeller material. Typical composition: 25-28% chromium, 2-3% carbon.

PropertyValueSignificance
Hardness600-700 HVExcellent abrasion resistance
Tensile strength400-600 MPaAdequate for most applications
Impact resistanceLowNot suitable for large rocks
Corrosion resistanceGood (pH 5-11)Handles most slurries
CostModerateGood value for performance

Best applications: Sand and gravel, coal, iron ore, most mineral processing slurries.

Natural Rubber

Rubber-lined or molded rubber impellers offer unique properties:

PropertyValueSignificance
Hardness35-70 Shore AResilient surface absorbs impact
Wear mechanismElastic reboundExcellent for fine particles
Temperature limit70°C typicalLimited in hot applications
Chemical resistanceVariable by compoundExcellent for acids, poor for oils
CostHigher initialLower total cost in some applications

Best applications: Fine sand (below 1mm dominant), acidic slurries, low-temperature applications.

Polyurethane

Polyurethane combines rubber's resilience with improved wear resistance:

PropertyValueSignificance
Hardness85-95 Shore AHarder than rubber, more wear-resistant
Tensile strength30-50 MPaExcellent tear resistance
Temperature limit50-60°CLower than rubber
Impact resistanceExcellentHandles varying conditions well
CostHigherJustified by extended life

Best applications: Medium sand, tailings, low-temperature slurries with moderate particle size.

Material Selection Guidelines

Slurry TypeParticle SizeRecommended Material
Fine sand (<0.5mm)FineNatural rubber or polyurethane
Coarse sand (0.5-2mm)MediumHigh-chrome iron or polyurethane
Gravel (2-10mm)CoarseHigh-chrome iron (A05 or higher)
Mixed sand/gravelMixedHigh-chrome iron with hardened tips
Acidic slurry (pH <5)AnyNatural rubber (check compatibility)
High temperature (>65°C)AnyHigh-chrome iron only

Sizing Impellers for Application

Determining Required Flow and Head

Proper impeller sizing starts with accurate determination of system requirements:

Flow calculation:

  • Determine process flow rate (m³/hr of slurry)
  • Account for slurry density: SG typically 1.2-1.8 for sand washing
  • Add margin for process variation: typically 10-15%

Head calculation:

  • Static head: Vertical lift from pump to discharge
  • Friction head: Pipe losses (use Hazen-Williams for slurry with correction)
  • Velocity head: Usually negligible for pipeline systems
  • Pressure head: Process equipment requirements (cyclones, etc.)

Impeller Diameter Selection

Select impeller diameter to provide required head at desired speed:

Key considerations:

  • Operate at 80-100% of BEP (Best Efficiency Point) for optimal wear life
  • Avoid operation below 60% BEP—causes recirculation wear
  • Size impeller for current needs with one diameter reduction available
  • Consider speed adjustment vs. impeller trim for flow control

Impeller trim guidelines:

ApplicationMaximum TrimReason
New installationFull diameterVerify system curve
Flow reduction needed10-15% diameterMaintains efficiency
Excessive head margin10-15% diameterReduces power consumption
Maximum trim20% diameterBeyond this, select smaller pump

Speed Considerations

Impeller speed affects both performance and wear life:

Speed vs. wear relationship:

Wear rate ∝ (Tip Speed)³

Doubling impeller speed increases wear rate by approximately 8×. This fundamental relationship drives the preference for larger, slower-running pumps in severe slurry applications.

Recommended tip speeds:

Slurry TypeMaximum Tip SpeedExpected Impeller Life
Fine sand, low concentration30 m/s6,000-10,000 hours
Coarse sand, moderate concentration25 m/s3,000-6,000 hours
Gravel, high concentration20 m/s1,500-3,000 hours
Abrasive mineral slurry18 m/s1,000-2,000 hours

Impeller Wear Patterns and Diagnosis

Normal Wear Patterns

Understanding normal wear patterns helps identify problems:

Vane leading edge wear: Normal pattern in abrasive slurries. Wear should be relatively uniform across all vanes.

Vane tip wear: Normal, proportional to operating time. Creates gap between impeller and casing liner.

Hub wear: Should be minimal in properly operating pump. Indicates recirculation if excessive.

Abnormal Wear Patterns

Wear PatternProbable CauseCorrective Action
Uneven vane wearImpeller imbalance, casting defectBalance check, replace impeller
Suction-side erosionCavitationIncrease NPSH, reduce speed
Hub erosionLow flow recirculationIncrease flow, check system curve
Shroud wear (back)Gland water ingress, high pressureCheck seal, adjust clearance
Localized gougingLarge particle impactImprove screening, protect pump

Wear Monitoring Methods

Track impeller wear to optimize replacement timing:

  • Weight measurement: Weigh impeller at each inspection. Track percentage loss.
  • Diameter measurement: Measure at multiple points for wear and balance assessment.
  • Vane thickness: Measure leading edge thickness at reference points.
  • Performance monitoring: Track head and flow for efficiency degradation.

Replacement criteria:

  • Weight loss exceeds 20% of original
  • Vane thickness below 50% of original
  • Efficiency drops more than 10% from new condition
  • Vibration increases indicating imbalance

Optimizing Impeller Life

Operating Practices

Operational practices significantly affect impeller life:

Start-up procedure:

  1. Prime pump completely before starting
  2. Start with discharge valve partially open
  3. Slowly open to operating point
  4. Never run dry—even briefly

Shutdown procedure:

  1. Reduce discharge valve setting
  2. Stop pump
  3. Flush if extended shutdown
  4. Close suction valve to prevent backflow

Operating point discipline:

  • Maintain operation within 80-100% of BEP
  • Avoid deadheading (closed discharge)
  • Avoid low-flow operation (<60% BEP)
  • Monitor power consumption for load changes

System Optimization

System design and maintenance affect impeller life:

Suction system:

  • Maintain adequate NPSH margin (minimum 1m above required)
  • Avoid air entrainment
  • Keep suction pipe velocity below 2 m/s
  • Ensure straight run before pump suction

Discharge system:

  • Properly sized pipe for target velocity (2-4 m/s for sand)
  • Minimize sharp bends and direction changes
  • Provide adequate pressure for solids transport

Economic Analysis of Impeller Selection

Total Cost of Ownership

Compare impeller options based on total cost, not purchase price:

Cost components:

  • Purchase price
  • Installation labor
  • Energy consumption (affected by efficiency)
  • Maintenance labor (adjustments, inspections)
  • Replacement frequency
  • Downtime cost

Example comparison for cyclone feed pump:

ParameterHigh-Chrome IronNatural Rubber
Impeller cost₹1,25,000₹1,85,000
Expected life3,000 hours5,000 hours
Efficiency72%68%
Power consumption (100m³/hr)75 kW79 kW
Annual energy cost (6,000 hr/yr)₹27 lakh₹28.4 lakh
Annual impeller cost₹2.5 lakh₹2.2 lakh
Downtime cost (2 changes/yr)₹1 lakh₹0.6 lakh
Total annual cost₹30.5 lakh₹31.2 lakh

In this example, the cheaper impeller with higher efficiency actually provides lower total cost, despite shorter wear life.

Lifecycle Analysis Process

  1. Calculate annual operating hours
  2. Determine expected life for each option (from supplier data or trial)
  3. Calculate replacements per year
  4. Calculate energy cost difference based on efficiency
  5. Estimate downtime cost for each replacement
  6. Sum all costs for true comparison

Conclusion

Slurry pump impeller selection requires balancing multiple factors: flow and head requirements, slurry characteristics, wear life expectations, efficiency, and total operating cost. No single impeller type or material suits all applications. Start with understanding your specific slurry properties—particle size distribution, concentration, corrosiveness, and temperature. Match impeller type (closed, semi-open, or recessed) to solids handling requirements. Select material based on the dominant wear mechanism in your application. Size the impeller for operation near best efficiency point, and implement operating practices that extend wear life. Track impeller wear systematically to optimize replacement timing and validate selection decisions. The right impeller choice can reduce your total pumping costs by 30-40% compared to a poor selection operating in the same application.

Share this article

Download PDF
WhatsApp Chat
