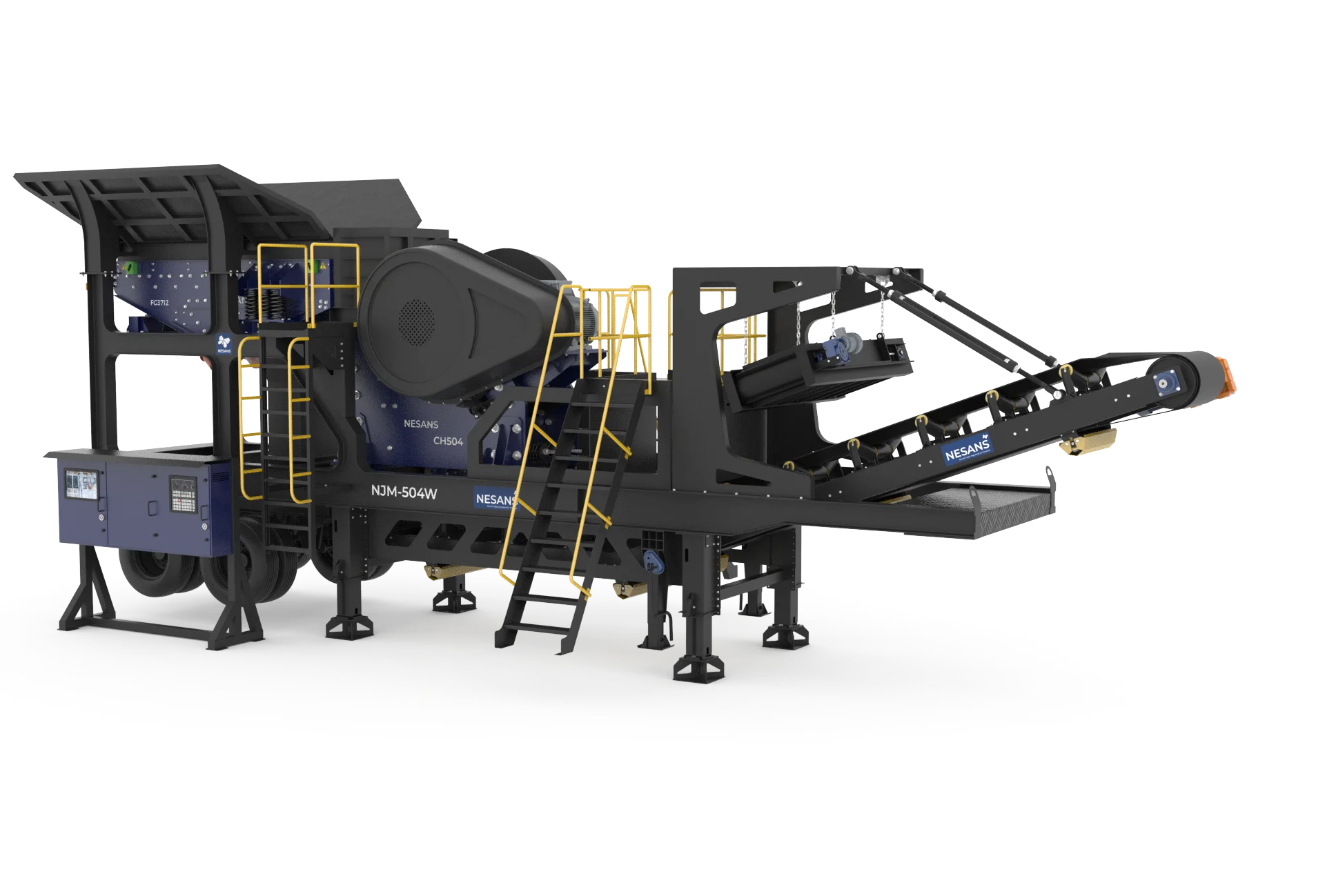

Mobile Jaw Crusher
Nesans Mobile Jaw Crushers combine the proven crushing power of our stationary jaw crushers with the flexibility of a fully mobile platform. Designed for contractors, quarry operators, and mining companies who need to move their crushing operations between sites or within large project areas.
Our mobile jaw crushers feature track-mounted chassis for easy relocation, integrated feed hoppers with grizzly screens, and diesel-electric or fully electric power options. The heavy-duty jaw chamber delivers consistent reduction ratios while the mobile platform eliminates the need for costly concrete foundations.
Whether you're processing blasted rock at a quarry, crushing demolition debris at a construction site, or handling ore at a mining operation, Nesans Mobile Jaw Crushers provide the throughput and reliability you need with the mobility your business demands.
Applications:

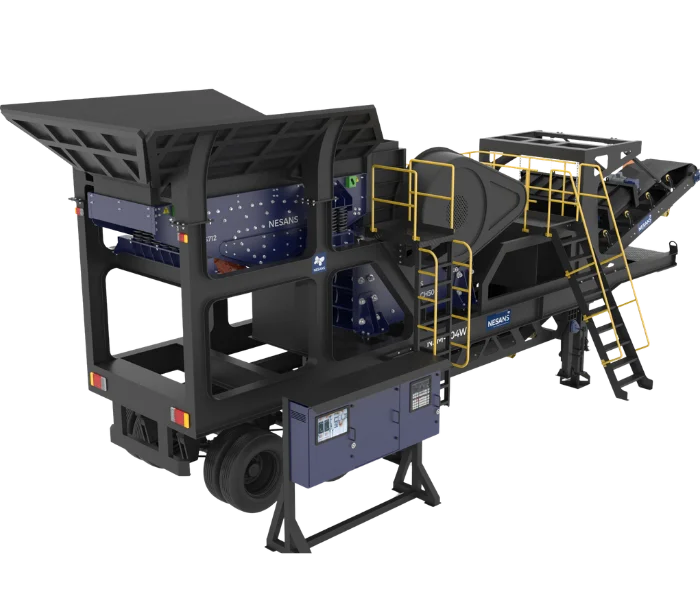

How It Works

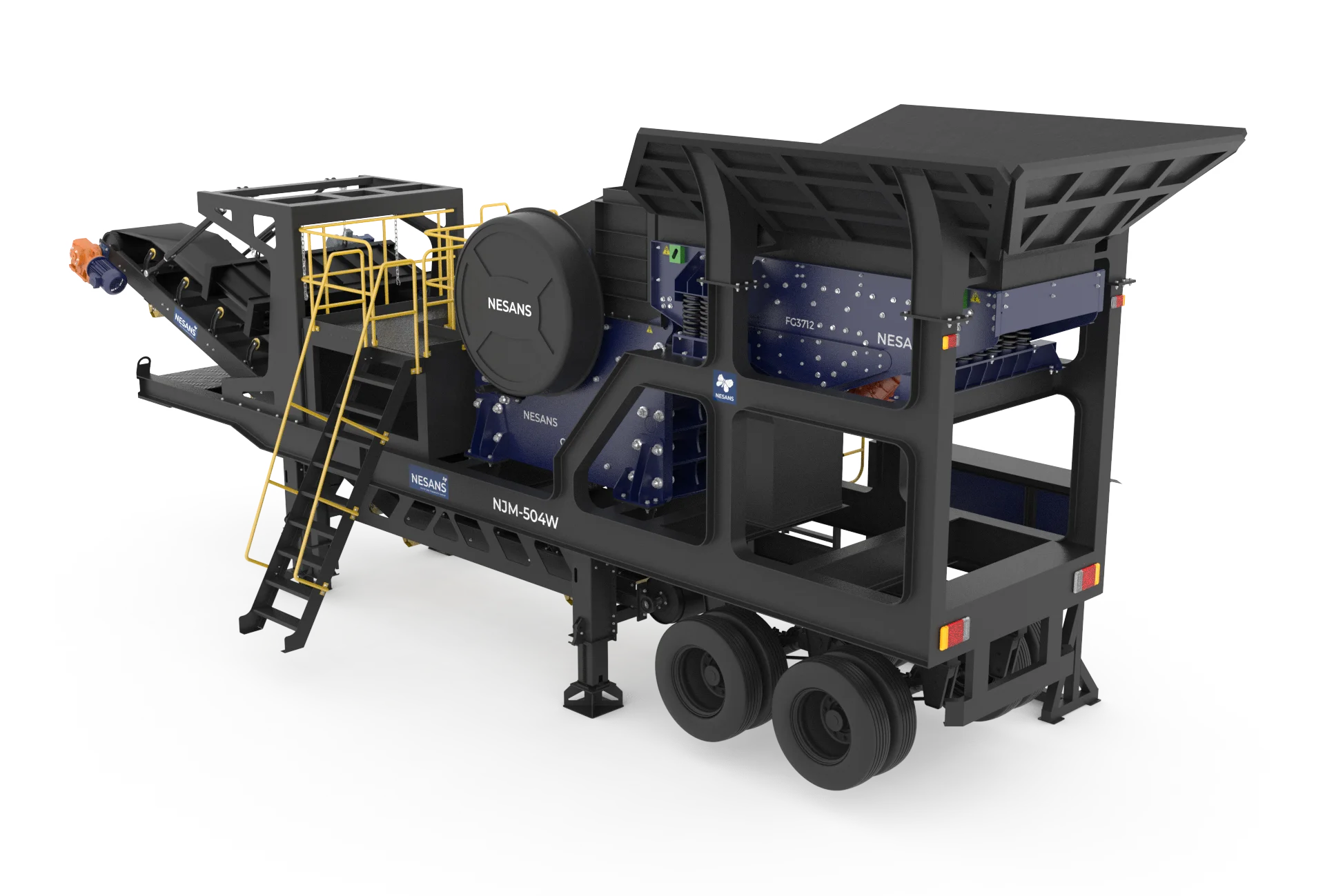

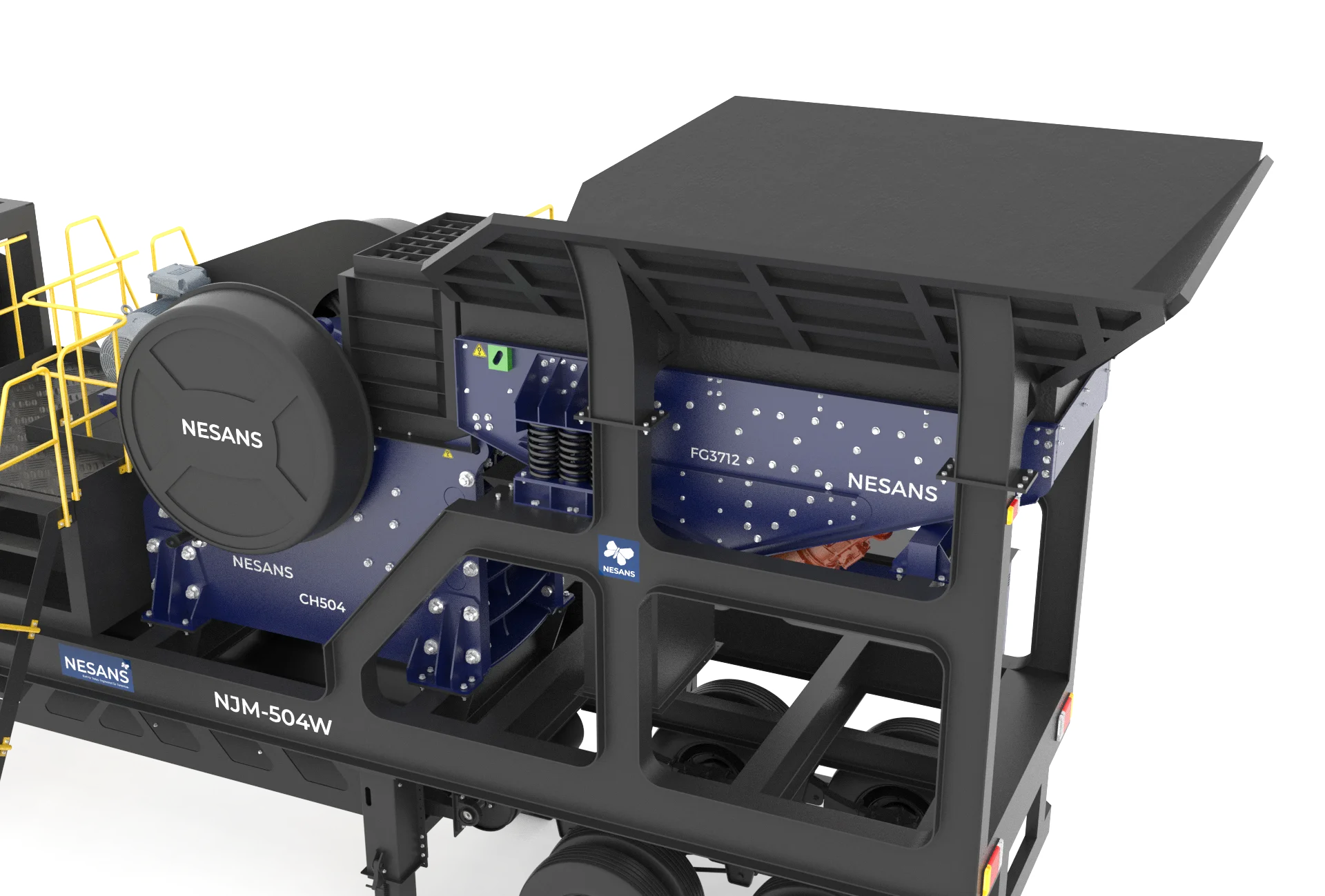

The Mobile Jaw Crusher operates through a hydraulically-controlled feed hopper that directs material into the vibrating grizzly feeder. Undersized material bypasses the crusher while correctly sized feed enters the jaw chamber.
Inside the chamber, the eccentric-driven swing jaw applies powerful compressive force against the fixed jaw, crushing rock through a combination of compression and attrition. The adjustable CSS (Closed Side Setting) controls product size.

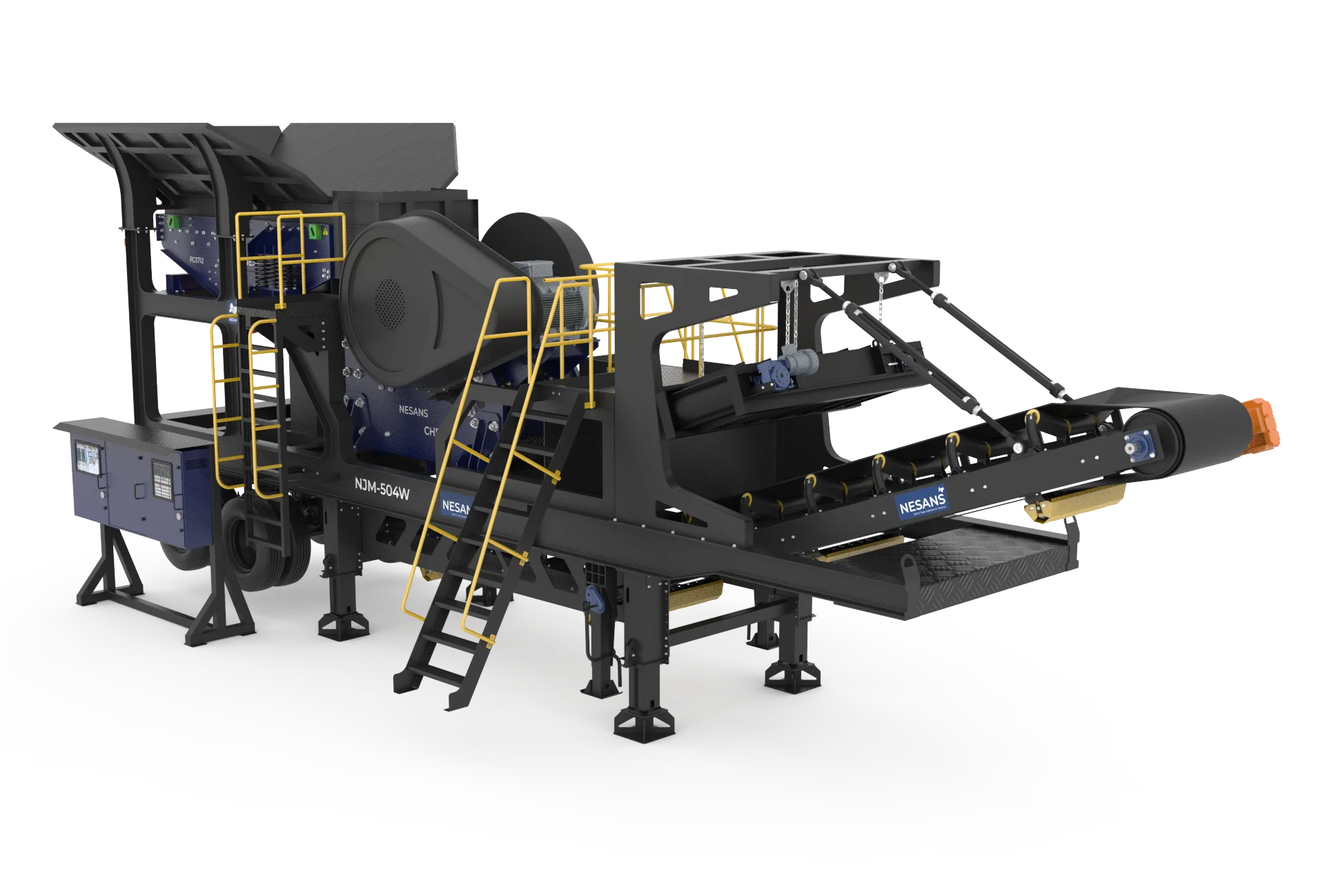

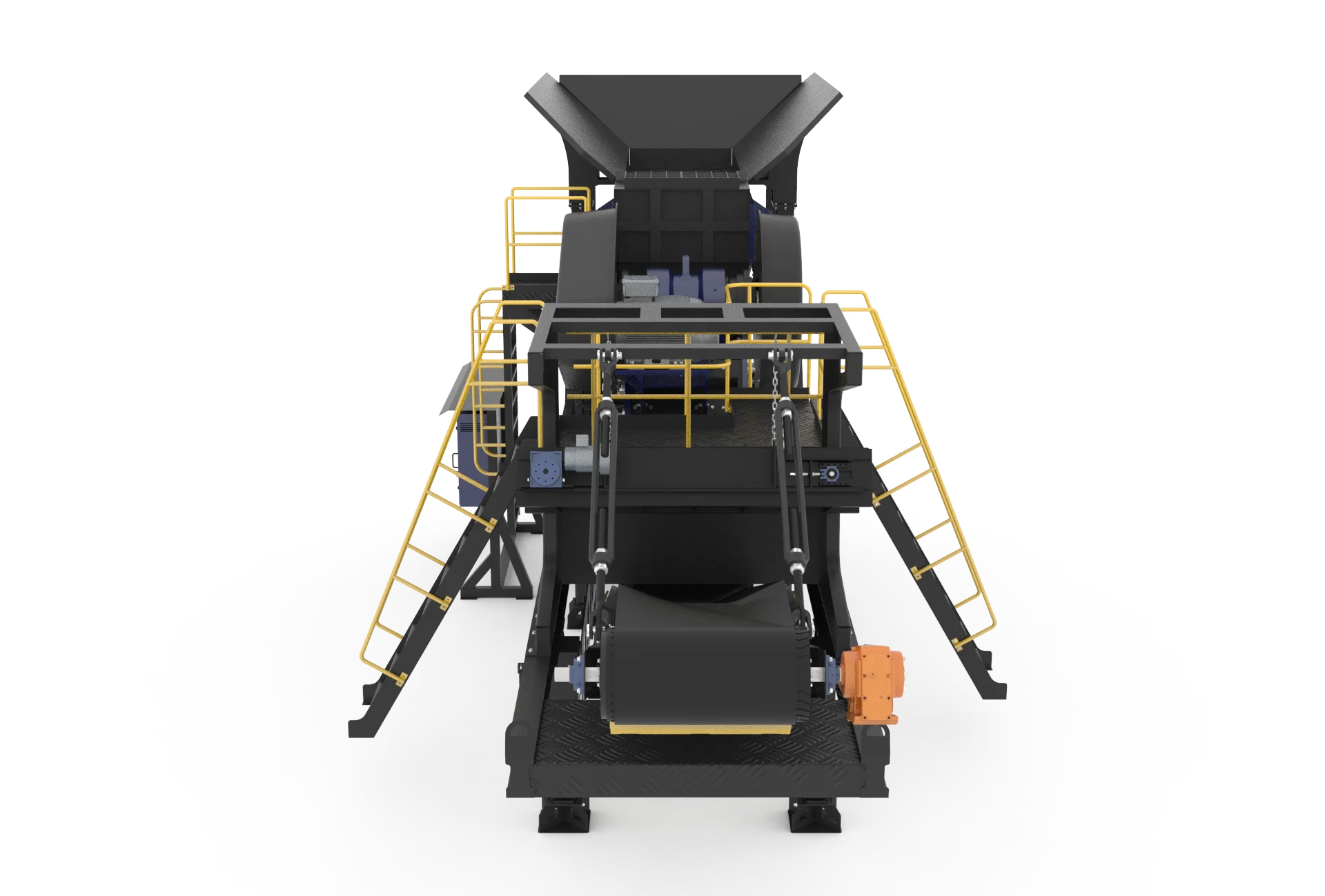

Crushed material discharges onto the main conveyor belt, which can be raised or lowered for stockpiling or feeding downstream equipment. The entire unit is powered by an efficient diesel-electric system and can be relocated using its hydraulic track drive.
Features and Advantages

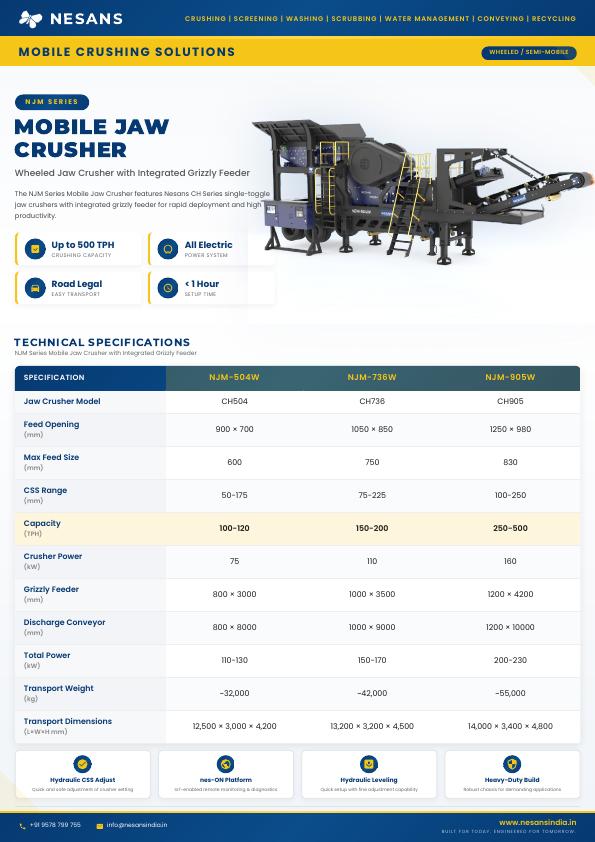

Specifications
| Model | Crusher | Feed Opening | Max Feed | CSS Range | Capacity | Crusher Power | Total Power | Weight |
|---|---|---|---|---|---|---|---|---|
| NJM-504W | CH504 | 900 × 700 | 600 | 50-175 | 100-120 | 75 | 110-130 | ~32,000 |
| NJM-736W | CH736 | 1050 × 850 | 750 | 75-225 | 150-200 | 110 | 150-170 | ~42,000 |
| NJM-905W | CH905 | 1250 × 980 | 830 | 100-250 | 250-500 | 160 | 200-230 | ~55,000 |
Product Gallery

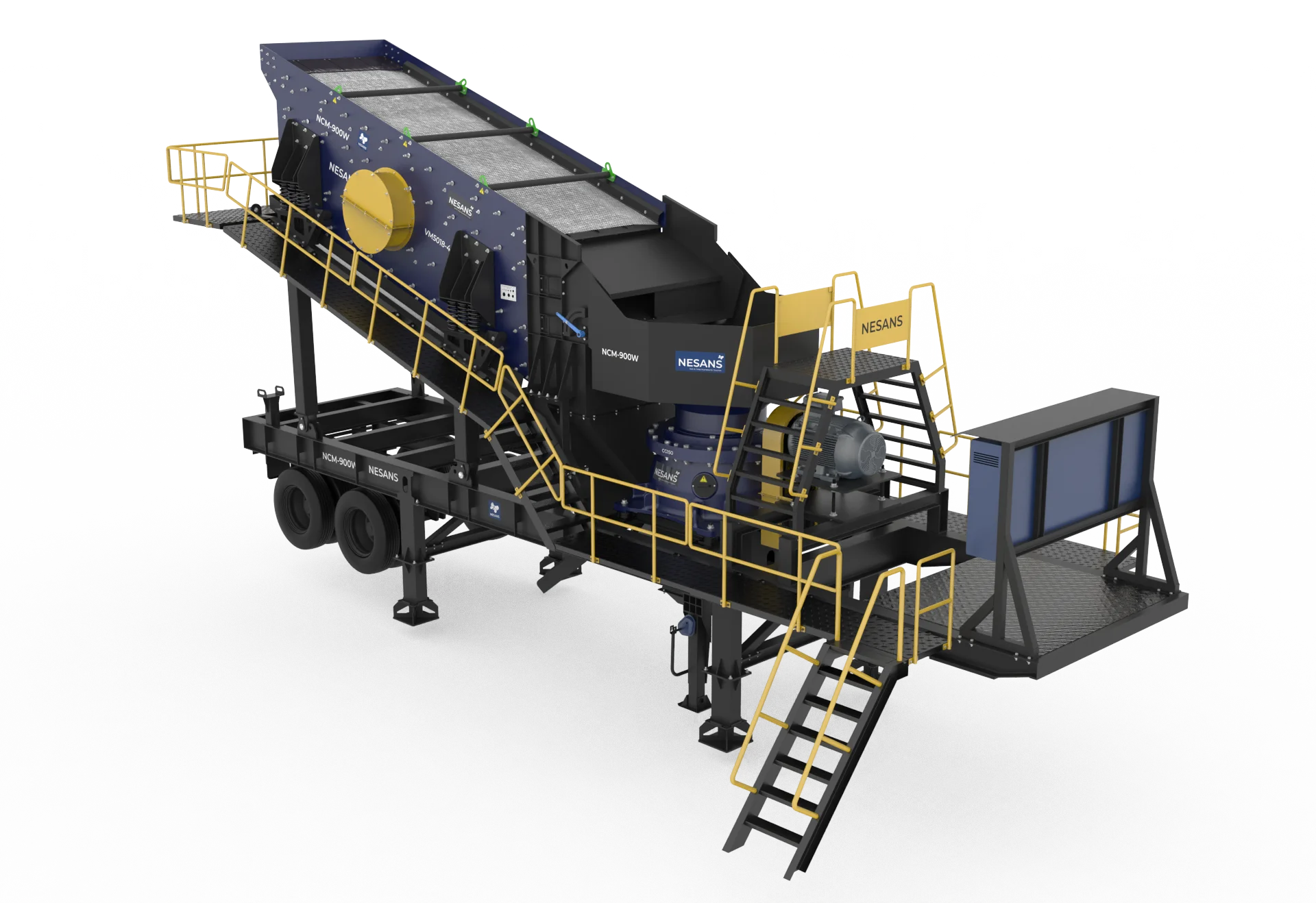

Relevant Products
FAQs
The Nesans NJM Series Mobile Jaw Crusher can accept feed sizes up to 830mm depending on the model:
- NJM-504W: Up to 600mm feed size
- NJM-736W: Up to 750mm feed size
- NJM-905W: Up to 830mm feed size

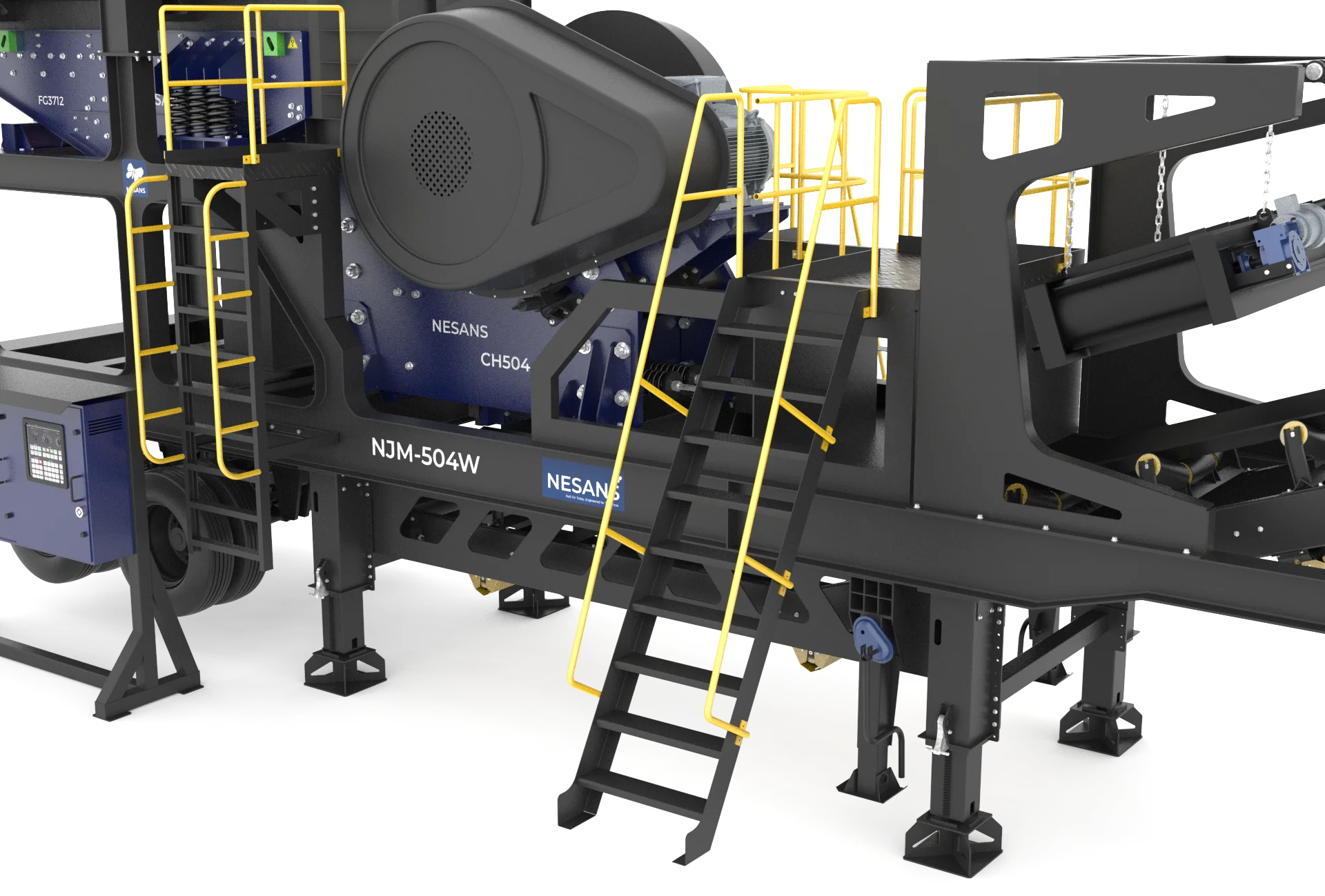

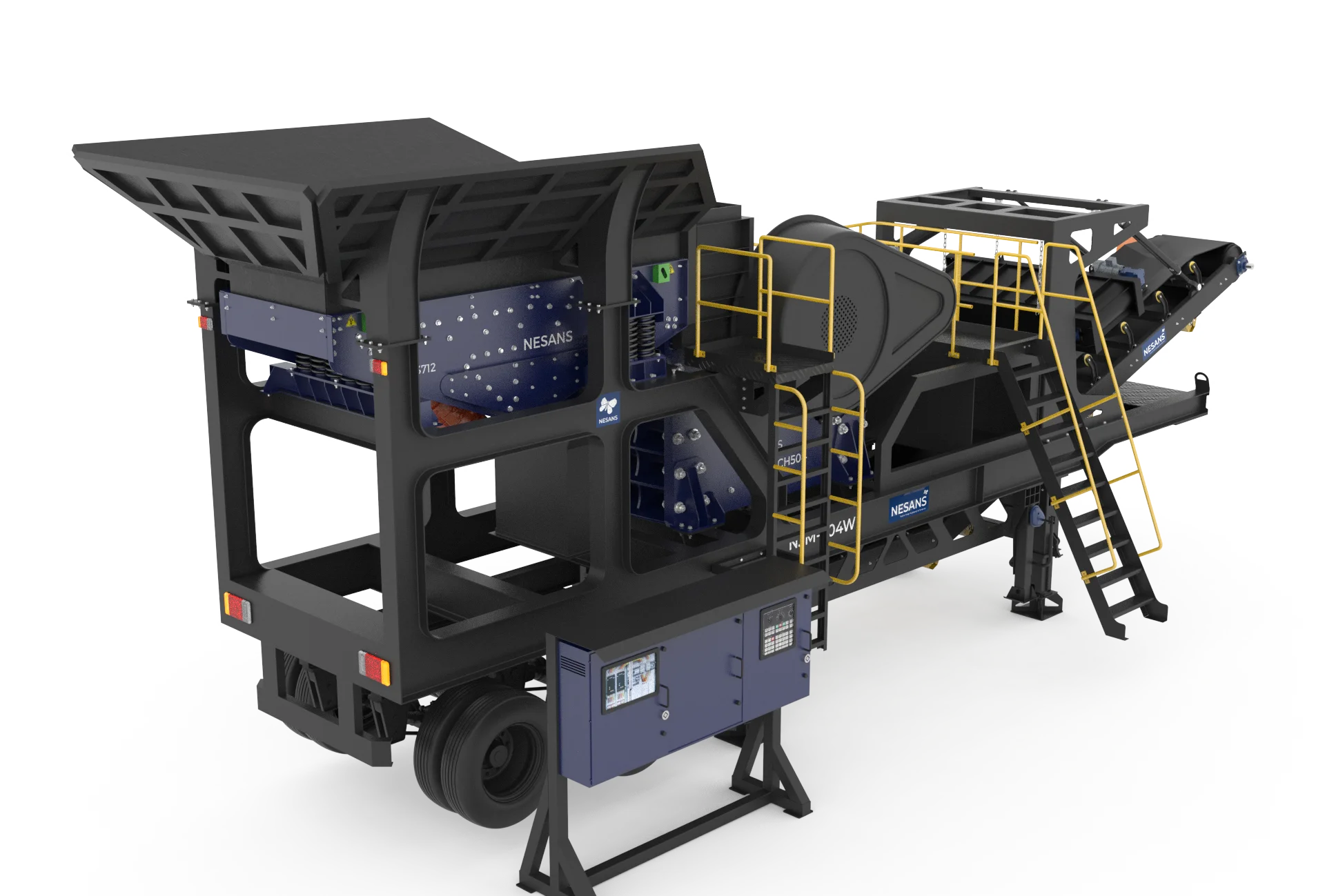

The wheel-mounted design with hydraulic support legs allows for rapid deployment in under 30 minutes. Simply tow the unit to location, deploy the hydraulic legs, connect to external power supply, and begin operations.

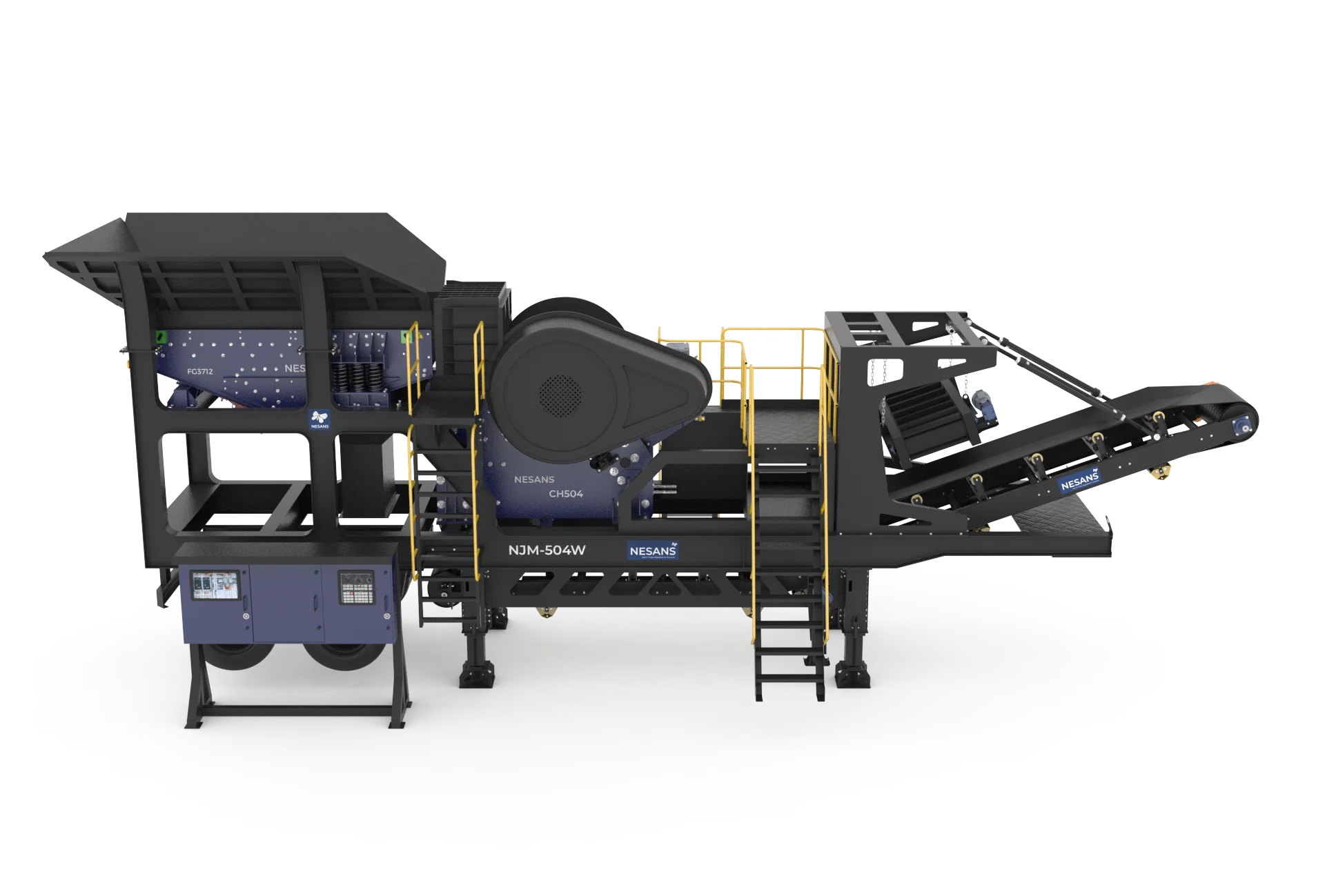

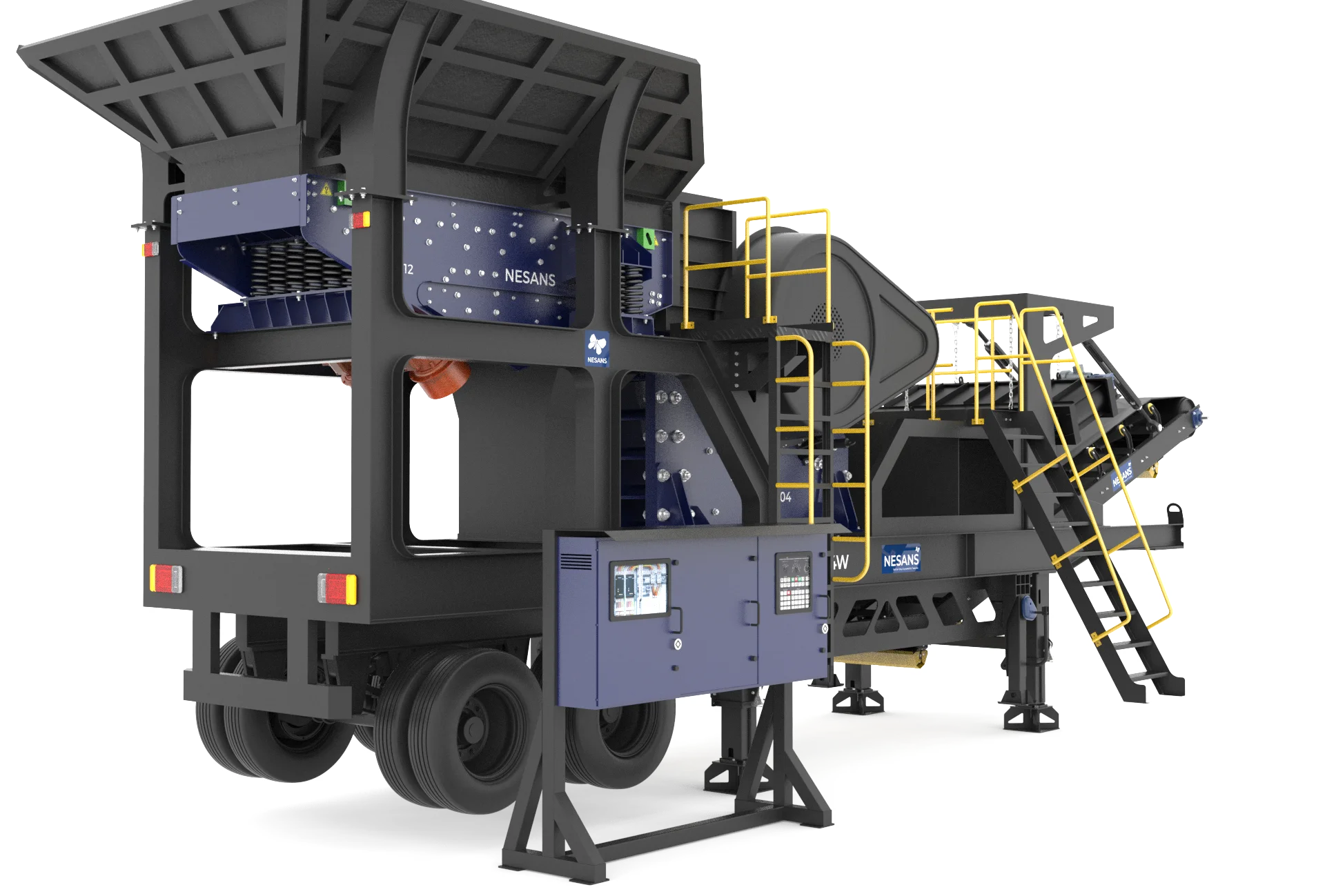

The Mobile Jaw Crusher requires an external power connection via the integrated control panel. The unit is designed for plug-and-play operation with standard industrial power supply. Generator sets can be used for remote locations without grid power.
The NJM Series effectively processes a wide range of materials including:
- Granite and basalt
- Limestone and sandstone
- River gravel and boulders
- Concrete and construction debris
- Mining ore and hard rock

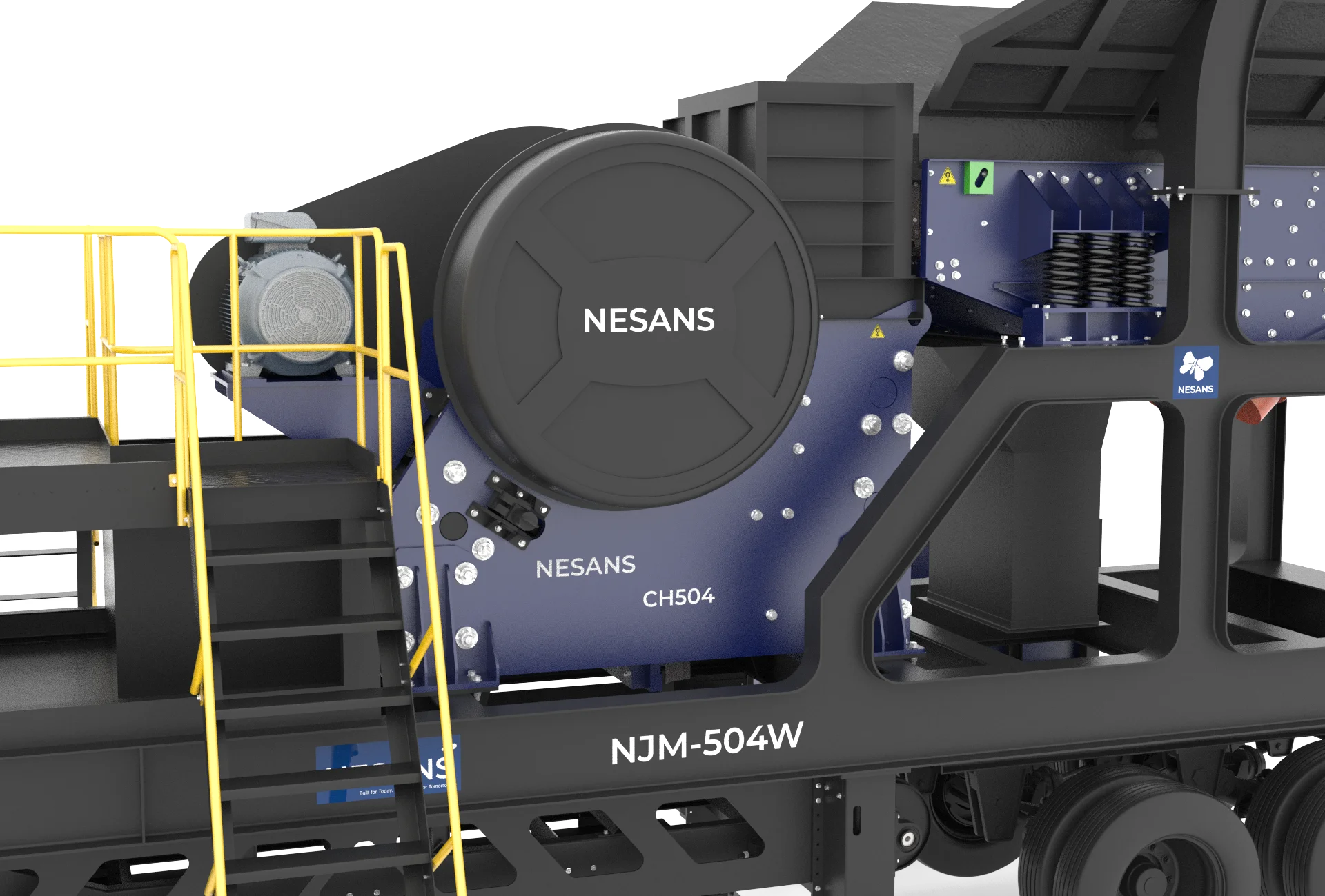

The deep crushing chamber delivers high reduction ratios suitable for primary crushing applications.
Production capacity varies by model:
- NJM-504W: 100-120 TPH
- NJM-736W: 150-200 TPH
- NJM-905W: 250-500 TPH
Actual throughput depends on feed material characteristics and closed side setting (CSS).
